Pipeliner welding is critical in many industries, including oil and gas, construction, and mining. As a professional welder, specialized equipment is essential to ensure that you can perform your job safely and efficiently, and a pipeliner welding hood is a crucial piece of equipment to consider. With so many options on the market, choosing the right pipeliner welding hood can be daunting.
This comprehensive guide’ll explore the features, benefits, and best practices of using a pipeliner welding hood. By the end of this article, you’ll be equipped with the knowledge needed to decide on the best pipeliner welding hood for your needs.
What is a Pipeliner Welding Hood?
A pipeliner welding hood is a specialized welding helmet for pipeline welding operations. It is an essential piece of personal protective equipment (PPE) for welders in the oil and gas, construction, and mining industries.
The significance of a pipeliner welding hood lies in its ability to provide welders with the necessary protection and functionality to carry out their welding operations effectively in challenging environments.
Components and Design Features of Pipeliner Welding Hoods
The features that differentiate pipeliner welding hoods from other types of welding hoods are specifically designed to meet the needs of pipeline welders. Here are some key components and design features of a pipeliner welding hood:
1. Helmet Shell
The helmet shell of a pipeliner welding hood is typically made of sturdy and heat-resistant material, such as thermoplastic or fiberglass, to withstand the harsh conditions encountered in pipeline welding.
2. Lens Assembly
The lens assembly is one of the most critical components of a pipeliner welding hood. It includes a protective lens on the outer side and a filter or auto-darkening lens on the inner side. The lens helps shield the welder’s eyes from harmful UV and infrared radiation emitted during welding.
3. Adjustable Headgear
A pipeliner welding hood is equipped with an adjustable headgear system that allows the welder to customize the fit and ensure the proper positioning of the hood on their head. This feature enhances comfort and allows for extended periods of use without discomfort or strain.
4. Filter Controls
Most pipeliner welding hoods have filter controls that enable welders to adjust the shade level of the lens. This adjustment is critical to match the optical protection to the specific welding process and ambient lighting conditions.
5. Respiratory Compatibility
Some pipeliner welding hoods are designed to be used with a respiratory system, allowing for integrated protection against fumes, dust, and other airborne contaminants commonly found in pipeline welding environments.
6. External Protection
Pipeliner welding hoods often have additional external components to protect the helmet, such as a heat-resistant cover or guard that shields the hood from flying sparks, heat, and debris.
These features benefit welders in many ways:
1. Improved Safety: A wide-field lens and lens shade options enhance visual protection, reducing the risk of eye fatigue, strain, and injury. Durable materials and additional external protection also contribute to a safer working environment by preventing impacts and debris from causing harm.
2. Increased Comfort: The adjustability and design of pipeliner welding hoods allow for a more comfortable and secure fit, reducing fatigue and discomfort associated with extended use.
3. Better Functionality: The wider field of vision and lens shade options enhance a welder’s ability to see their work clearly, improving precision and overall weld quality.
4. Respiratory Protection: Pipeliner welding hoods with respiratory compatibility ensure that workers are protected from dangerous fumes. This feature is especially crucial in industries such as oil and gas, where airborne contaminants can cause severe health problems.
Best Pipeliner Welding Hood in the Market in 2024
1. Jackson Safety PL 280 Welding Hood for Pipeline
Pros
2. The adjustment knob is easy to use
Cons
2. The lens is not auto darkening
The Jackson Safety Welding Hood, specifically the PL280 model, is a reliable and high-performing welding hood designed with a compact design for pipeline work. Its traditional bucket style allows easy access to small spaces and tight areas, making it ideal for welders working in challenging environments.
Molded from Super Tuff Nylon, this hood is lighter than fiberglass yet built to withstand the harshest welding conditions, ensuring durability and longevity. One of the standout features of the Jackson Safety Welding Hood is its lift-front flexibility. The spring-loaded lift front eliminates the need to raise the welding helmet during pre/post-preparation work. This feature saves time and effort, allowing welders to seamlessly transition between welding and other tasks without removing their helmets.
Safety and clear vision are top priorities for the Jackson Safety Welding Hood. It has an ANSI Z87.1+ / CSA Z94.1 certified high-impact polycarbonate window, providing excellent protection against welding sparks and debris. The 2″ x 4.25″ Shade 10 filter ensures optimal shading for welders, reducing eye strain and preventing damage caused by harmful rays.
Additionally, the hood features a specially designed lens retention system that allows for easy loading of filters, covers, and protective plates. Comfort is another key aspect of the Jackson Safety Welding Hood. It incorporates the patented 370 Speed Dial ratcheting headgear, which includes the “Qwik-Fit” rear swivel headband and “Easy Grip-Easy Turn” ratcheting adjuster knob.
This design allows welders to achieve a perfect fit, maximizing comfort during long welding sessions. The hood’s shape is designed to accommodate cartridge respirators, providing compatibility for additional respiratory protection. Lastly, the Jackson Safety Welding Hood is proudly made in the USA. This speaks to the brand’s commitment to quality manufacturing and ensures welders can trust the hood’s reliability and performance.
2. Sellstrom Lightweight Pipeliner Welding Hood
Pros
2. The construction is top notch
Cons
The Sellstrom Lightweight Pipeliner Welding Hood is a classic choice in the market, offering a traditional “Bucket Style” design that has been trusted for years. This helmet provides complete wraparound protection with its extended head protection and chin guard, ensuring safety against welding spatter.
Molded from Super Tuff nylon, the helmet is durable and lighter than fiberglass. This lightweight design is highly beneficial for welders as it reduces strain on the neck and provides greater mobility. The helmet comes pre-assembled with a ratchet headgear and forehead band, allowing customization to fit personal preferences and comfort settings.
The front lift of the helmet is designed with a 2″ x 4 1/4″ size and features a spring-loaded positive lock feature. This lift front makes it convenient for welders to adjust their viewing area quickly and easily. The helmet is suitable for all welding applications and supports standard-size filters and cover plates (sold separately) commonly found in the market.
The Sellstrom Lightweight Pipeliner Welding Hood meets the ANSI Z87.1 Standards, ensuring its compliance with safety regulations. Additionally, it is CUL Certified to CAN/CSA Z94.3, further affirming its quality and adherence to industry standards.
This welding helmet is versatile and suitable for various welding applications. Whether TIG, MIG, or stick welding, this auto-darkening helmet provides reliable protection. Furthermore, it supports standard-size filters and cover plates, making it compatible with commonly available accessories. In terms of cost, Sellstrom ensures a low cost of ownership for their welding helmets. In addition to their initial affordability, these helmets are designed with durability and long-term reliability, reducing the need for frequent replacements and saving money in the long run.
3. Fiber-metal by Honeywell Pipeliner Welding Helmet
Pros
2. Made with high-quality materials
3. The lens provides a clear view
Cons
2. The painting is not as good as it should be
The Fiber Metal by Honeywell Welding Hood is a durable and reliable choice for professional welders. It offers a range of features that prioritize safety, comfort, and clear vision. The hood is made from tough yet lightweight SuperGlas Plus material. This material is resistant to moisture and impact, preventing cracks and chips that could compromise its integrity. The smooth surface is self-extinguishing, deflecting sparks, and ensuring further protection during welding.
Specifically designed for pipe welding, the compact design of the hood allows for easy access to small spaces and tight clearances where a standard welding helmet may not fit. The Pipeliner Welding Helmet has a 2″ x 4″ Shade 10 lens, allowing for clear viewing of the weld puddle. The lens filters out 100% UV and IR wavelengths, ensuring maximum eye protection.
The hood has easy-to-set ratcheting headgear, ensuring a comfortable and secure fit. The overhead band has multiple adjustments, allowing the welder to set the welding mask to the best working position and optimize weld viewing. This feature ensures that the hood stays firmly in place while welding.
The free-floating arms of the welding hood minimize pressure points, providing enhanced comfort during long welding sessions. The hood’s design also ensures good balance and stability while welding, enhancing the user’s experience.
4. Chopped Leather Top Pipeliner (Sugar Scoop) Welding Hood
Pros
2. Very durable
Cons

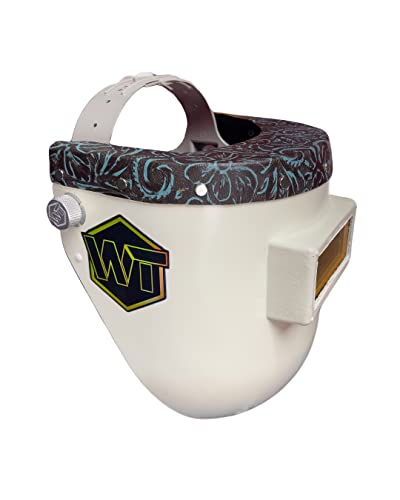

The Chopped Leather Top Pipeliner Welding Hood is a premium quality choice for professionals working in bright environments. It offers a range of features that provide comfort, convenience, and safety. The leather material is processed through molding and pre-stretching, which helps the hood maintain its shape and structure. This ensures the hood fits snugly and comfortably over the user’s head during long welding sessions.
The hood includes a generous amount of leather compared to traditional chopped top pipeliners. This extra leather adds to the hood’s durability and prevents light from getting in through the top of the hood and reflecting onto the user’s lens. This feature is especially beneficial in bright environments, ensuring a clear view of the welding area.
The hood features a slim cut, with a 1″ cut at the bottom that tapers upwards towards the fasteners. This cut allows for a better fit around the neck and shoulders, ensuring comfortable wear and full coverage of the head and face.
The Chopped Leather Top Pipeliner Welding Hood has aluminum headgear fasteners, silicone pressure gaskets, and a Weldtube High Visibility Lens. Each feature would typically cost an additional $20, making this hood a great value for welders looking to upgrade their protective gear.
5. Sellstrom Nylon Super Slim Welding Helmet
Pros
2. Great value for the money
Cons
2. The tight fit of the helmet makes it hard to wear anything underneath
The Sellstrom Welding Helmet features a traditional “Bucket Style” design that has proven to be a legacy in the market. It offers extended head protection and a chin guard, providing complete wraparound protection against welding spatter. This design ensures maximum safety for the user.
The helmet is molded from the world’s toughest thermoplastic resin, ma it durable and long-lasting. Despite its rugged construction, the helmet remains lightweight, ensuring comfortable wear during long welding sessions. The included ratchet headgear and forehead band can be adjusted to fit personal preferences and comfort settings, ensuring a customized fit for each user.
The Sellstrom Welding Helmet boasts a 2″ x 4 1/4″ fixed front, making it suitable for all welding applications. It is designed to accommodate standard-size filters and cover plates sold separately. The easy filter replacement feature allows for quick and hassle-free maintenance. Additionally, the helmet is proudly made in the USA, ensuring high quality and craftsmanship.
The Sellstrom Welding Helmet meets ANSI Z87.1 Standards, guaranteeing compliance with safety and performance requirements. It is also CUL Certified to CAN/CSA Z94.3 standards, meeting the necessary criteria for welding protection. The helmet’s easy-to-use filter and cover plate installation ensures it is ready for use straight out of the box.
Factors to Consider When Choosing a Welding Helmet
When selecting a pipeliner welding hood, it’s important to consider several factors to ensure you choose the right one for your needs. Here is a detailed list of key factors to consider:
1. Lens Material
Look for a pipeliner welding hood with a lens made from high-quality materials that can withstand the rigors of pipeline welding. Polycarbonate or glass is commonly used for durability and resistance to impacts and heat.
2. Lens Size
Consider the size of the lens in the welding hood. A larger lens allows for a wider field of view and better visibility of the welding area.
3. Lens Shade Options
Check if the welding hood offers a range of lens shade options. This allows you to adjust the darkness level of the lens to suit different welding processes and lighting conditions.
4. Helmet Material
Evaluate the material used for the helmet shell. Look for a robust, heat-resistant material, such as thermoplastic or fiberglass, that can withstand the harsh conditions encountered in pipeline welding.
5. Headgear and Adjustability
Pay attention to the headgear system and adjustability features of the welding hood. Look for comfortable headgear with ample adjustability to ensure a secure and customized fit.
6. Respiratory Compatibility
If you require respiratory protection, choose a pipeliner welding hood compatible with respiratory equipment. Check if it has features that allow for the integration of a respirator, such as a respirator attachment point or a shroud for air supply.
7. Weight
Consider the weight of the welding hood, as a heavy hood may cause discomfort or fatigue during extended periods of use. Look for a lightweight yet durable option that offers a good balance between comfort and protection.
8. External Protection
Assess if the welding hood has additional external protection features, such as a guard or cover, to shield the hood from sparks, debris, and heat.
9. Price and Quality
Consider the balance between the price and quality of the welding hood. While it’s important to stay within your budget, investing in a high-quality hood that provides the required safety and functionality is equally crucial. Remember that a cheaper option may compromise durability and performance.
Best Practices and Tips for Using Pipeliner Welding Hoods
To use a pipeliner welding hood effectively and safely, it is important to follow these tips and best practices:
1. Proper Usage Techniques:
- Ensure the welding hood is securely fastened to your head using the headgear system and properly adjusted for a comfortable and snug fit.
- Check and adjust the lens shade to the appropriate level for the specific welding process and ambient lighting conditions.
- Position the hood to provide a clear field of view of the welding area while protecting your face and eyes from sparks and debris.
- Use the welding hood and other personal protective equipment (PPE), such as gloves, protective clothing, and respiratory protection if necessary.
2. Maintenance Tips and Cleaning Procedures:
- Regularly inspect the welding hood for any signs of damage, such as cracked lenses or broken parts. Replace any worn-out or damaged components immediately.
- Clean the lens and the hood regularly using recommended cleaning solutions or wipes specifically designed for welding hoods. Avoid using abrasive materials or chemicals that may damage the lens or the hood’s material.
- Store the welding hood in a clean and dry environment to prevent dust, dirt, or moisture from affecting its performance.
3. Regular Inspections and Component Replacement:
- Conduct regular inspections to ensure the welding hood is in good working condition. Check for any signs of wear and tear, loose fittings, or damaged components.
- Pay special attention to the lens, headgear system, and helmet shell. Replace any damaged or worn-out parts immediately to maintain optimal safety and performance.
Conclusion
The right pipeliner welding hood is crucial for pipeline welders to ensure safety, comfort, and optimal performance. These specialized hoods offer features such as wide-field lenses, lens shade options, durability, comfort, and respiratory compatibility that cater specifically to pipeline welding needs.
By considering factors like lens material, size, helmet material, headgear, and respiratory compatibility, welders can find the perfect balance between price and quality. To use a pipeliner welding hood effectively and safely, it is important to follow proper usage techniques, conduct regular inspections, and maintain the hood by cleaning it regularly and replacing worn-out components. These practices enhance safety, extend the life of the welding hood, and contribute to high-quality welds.
The importance of pipeliner welding hoods cannot be overstated in pipeline welding, considering the unique challenges and hazards involved in this type of work. Investing in a reliable and suitable pipeliner welding hood is not just a matter of personal comfort but also a critical measure to safeguard against potential injuries and ensure optimal weld quality.
By understanding the features, factors for selection, and best practices for using pipeliner welding hoods effectively, welders can enhance their productivity, protect their health, and contribute to a safer and more efficient pipeline welding industry.
